Real-Time Threat Detection and Analysis Using Splunk SIEM

Project Overview

In this project, I implemented a centralized threat detection and monitoring solution using Splunk. The system was designed to ingest, parse, and visualize various log sources including SSH, FTP, and web login attempts, simulating real-world attacker behavior using tools like Hydra and Gobuster from a Kali Linux machine.

The logs were parsed and enriched in Splunk using custom configurations (inputs.conf, props.conf, transforms.conf, and fields.conf). Custom alerts were created to monitor brute-force attacks, enumeration attempts, and suspicious login behaviors.

Project Objectives

  • Deploy and configure Splunk on an Ubuntu VM
  • Ingest logs from multiple sources: SSH, FTP, and web login/enumeration logs
  • Simulate real-world attacker behaviors using Kali Linux
  • Parse and extract fields using props.conf and transforms.conf
  • Create real-time alerts and dashboards to monitor attacker activity

Tools and Technologies Used

  • Splunk (Enterprise Trial / Free)
  • Ubuntu Linux (Host machine)
  • Kali Linux (Attacker machine)
  • Hydra (for brute-force attack simulation)
  • Gobuster (for web directory enumeration)
  • Custom Flask Web Login Page (for capturing web logins)

System Setup and Log Sources

1. Splunk Installation and Configuration

  • Installed Splunk on Ubuntu

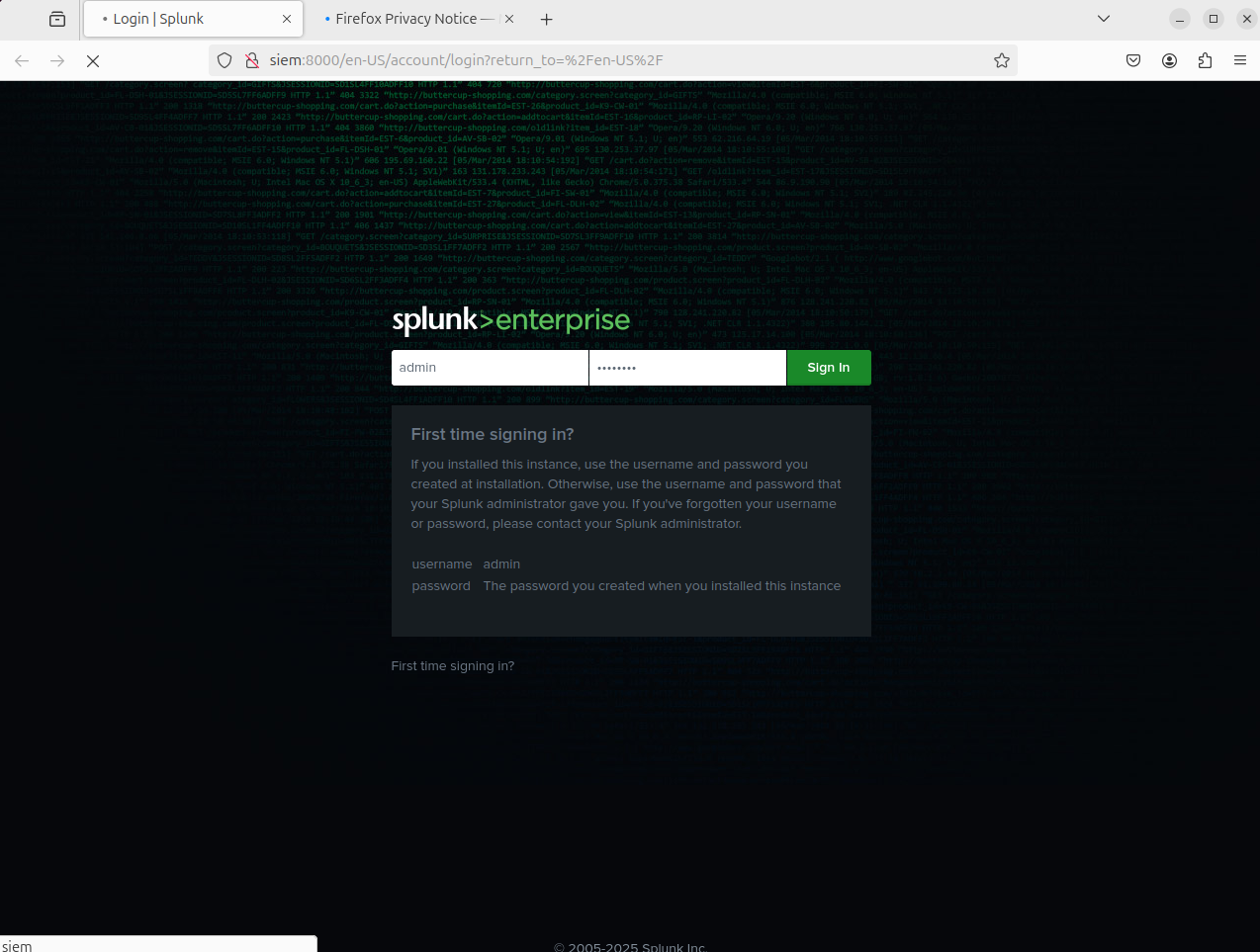

Splunk Login Page

Splunk Enterprise login page after installation on Ubuntu

  • Created index linux_logs

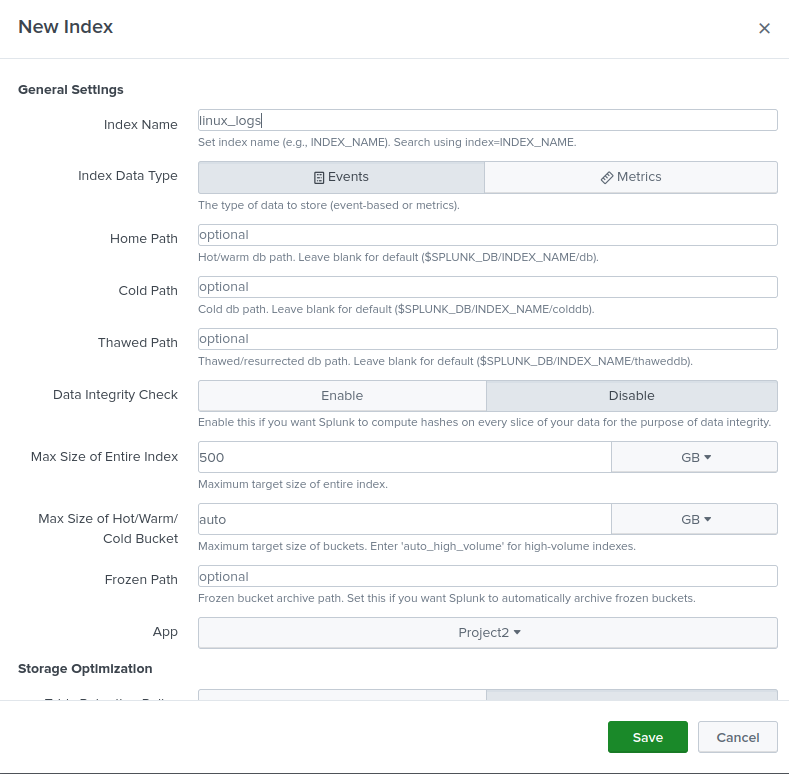

Splunk linux_logs Index

linux_logs index created in Splunk for centralized log storage

Log Source Ingestion

inputs.conf

→ Configured inputs.conf to ingest SSH, FTP, Web server logs

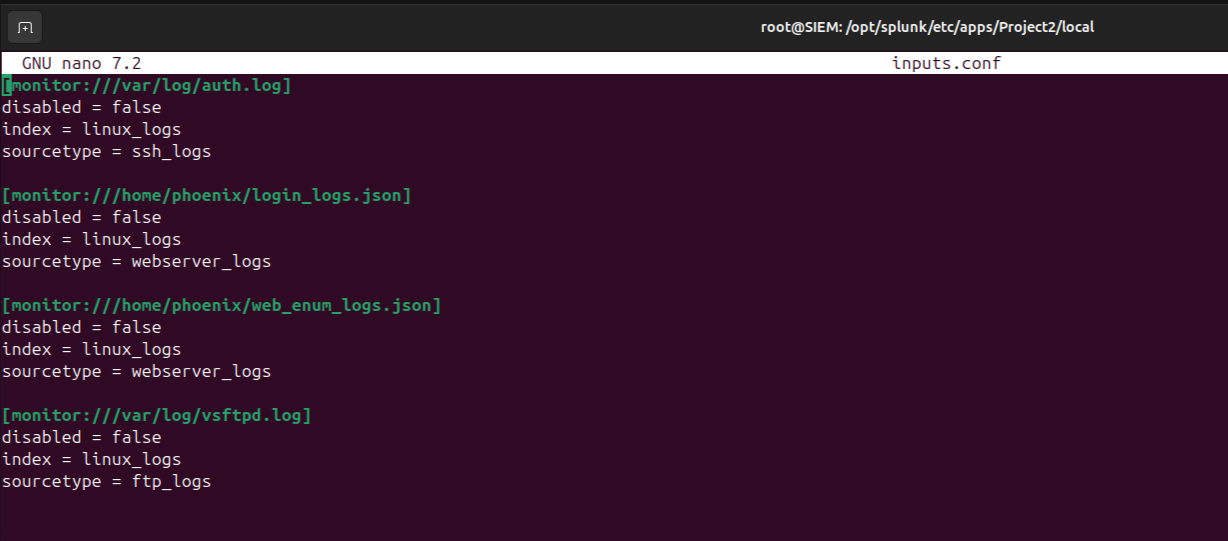

inputs.conf Splunk configuration

inputs.conf configuration in Splunk for log ingestion

🛠 Field Extraction and Parsing

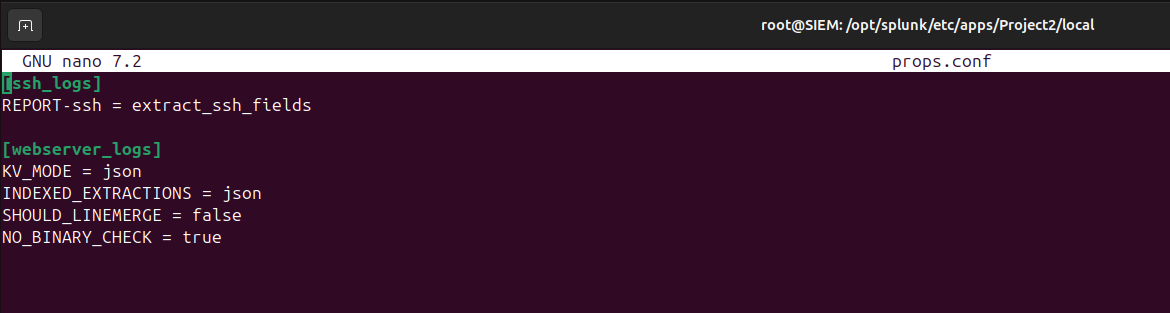

props.conf

  • SSH logs are routed to a transformation for custom regex parsing.
  • Web logs in JSON format are automatically parsed using Splunk's JSON handling capabilities.
props.conf Splunk configuration

props.conf configuration in Splunk for field extraction

transforms.conf

  • Extracts action, user, and src_ip fields from SSH logs.

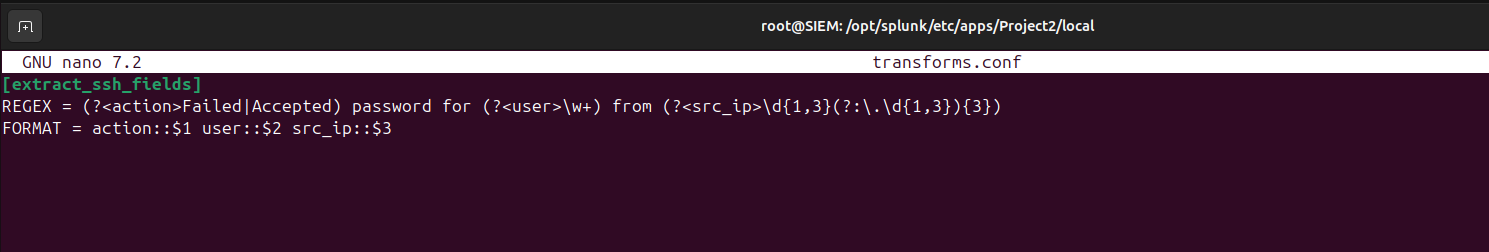

transforms.conf Splunk configuration

transforms.conf configuration in Splunk for SSH log field extraction

fields.conf

  • Ensures the extracted fields are indexed and available for efficient searching.

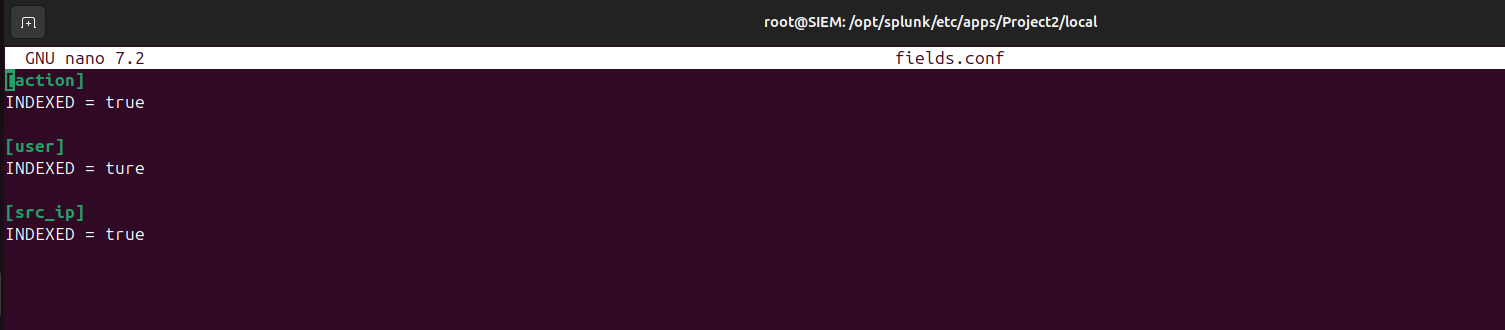

fields.conf Splunk configuration

fields.conf configuration in Splunk for indexing extracted fields

Threat Simulation using Kali Linux

1. SSH & FTP Brute-Force Attacks

  • Simulated brute-force attacks using Hydra targeting:
    • OpenSSH service
    • VSFTP server

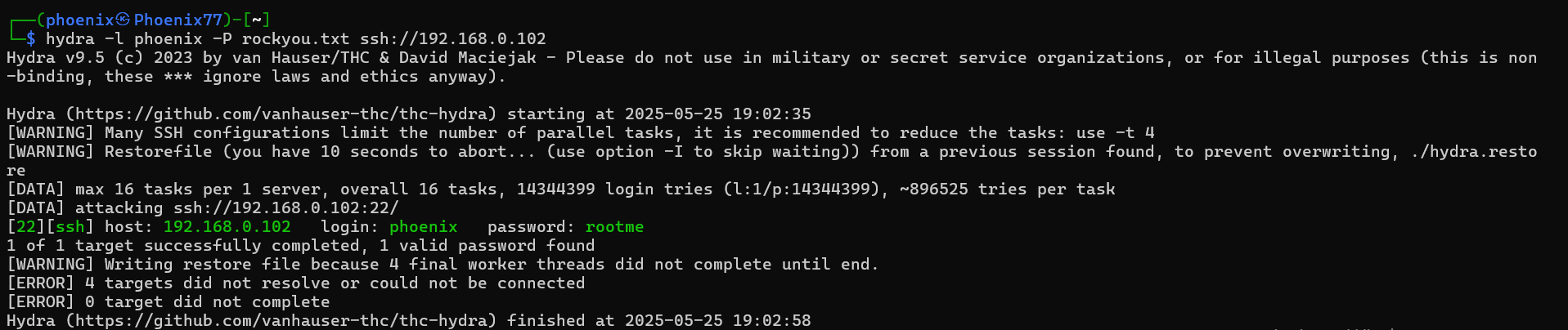

SSH brute-force attack using Hydra

SSH brute-force attack using Hydra

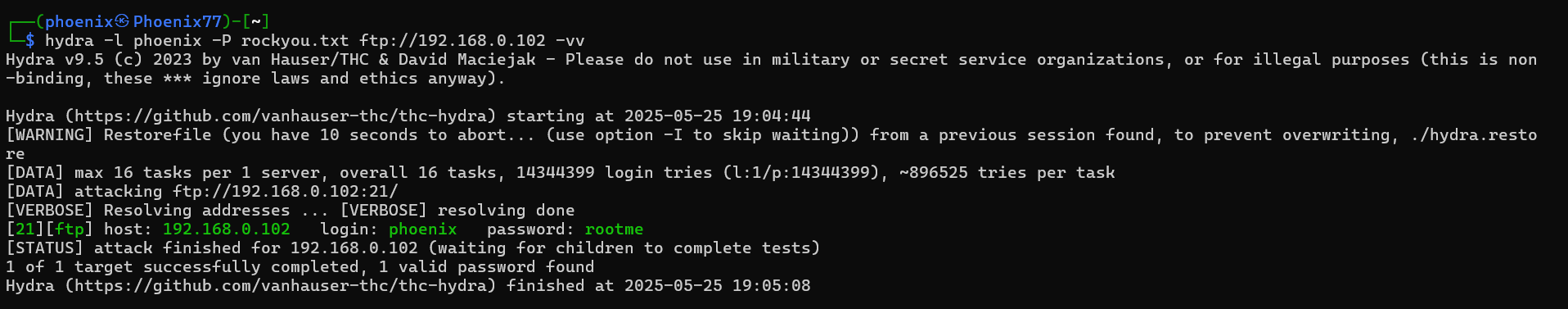

FTP brute-force attack using Hydra

FTP brute-force attack using Hydra

2. Web Login Brute Force

Simulated brute-force attacks using Hydra targeting Web Login page

  • Used a custom Flask web login form to capture POST login attempts

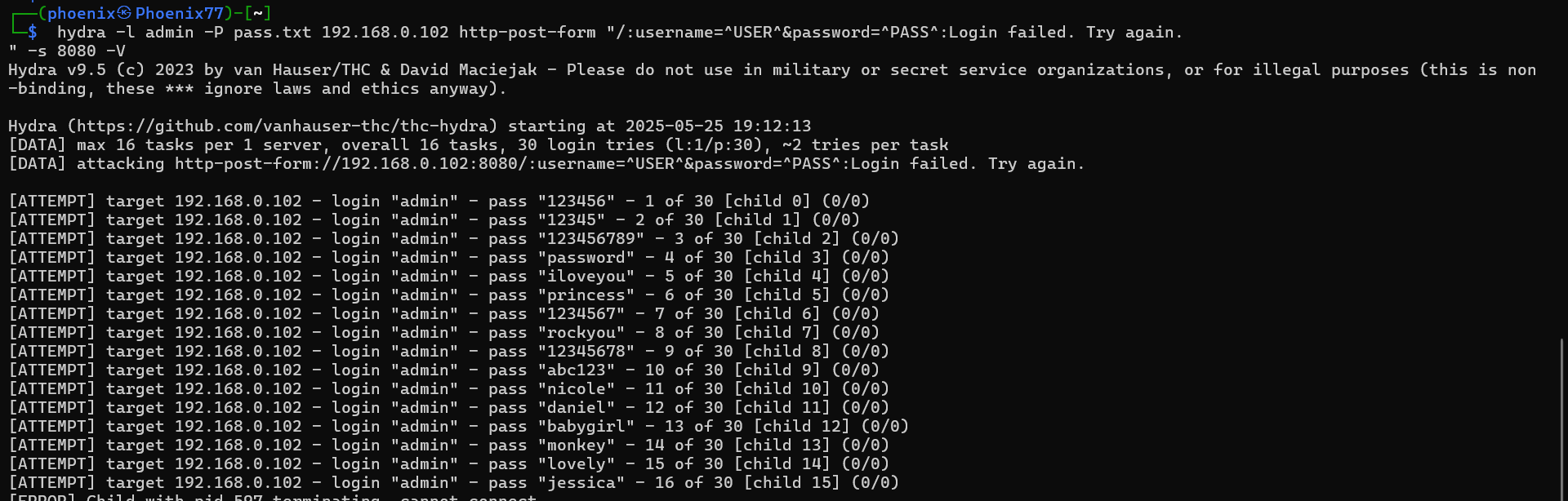

Web Login brute-force attack using Hydra

Web Login brute-force attack using Hydra

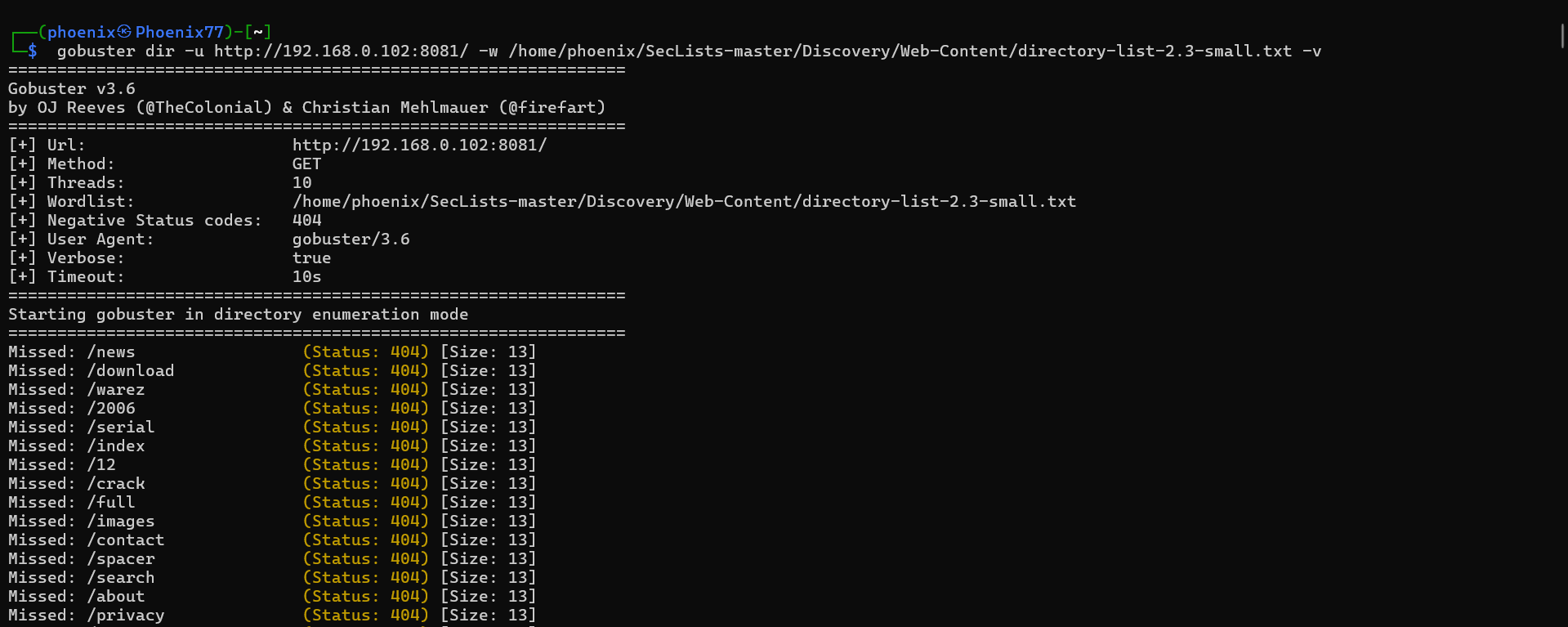

3. Web Directory Enumeration

  • Performed directory enumeration using Gobuster on exposed HTTP server
Web directory enumeration using Gobuster

Web directory enumeration using Gobuster

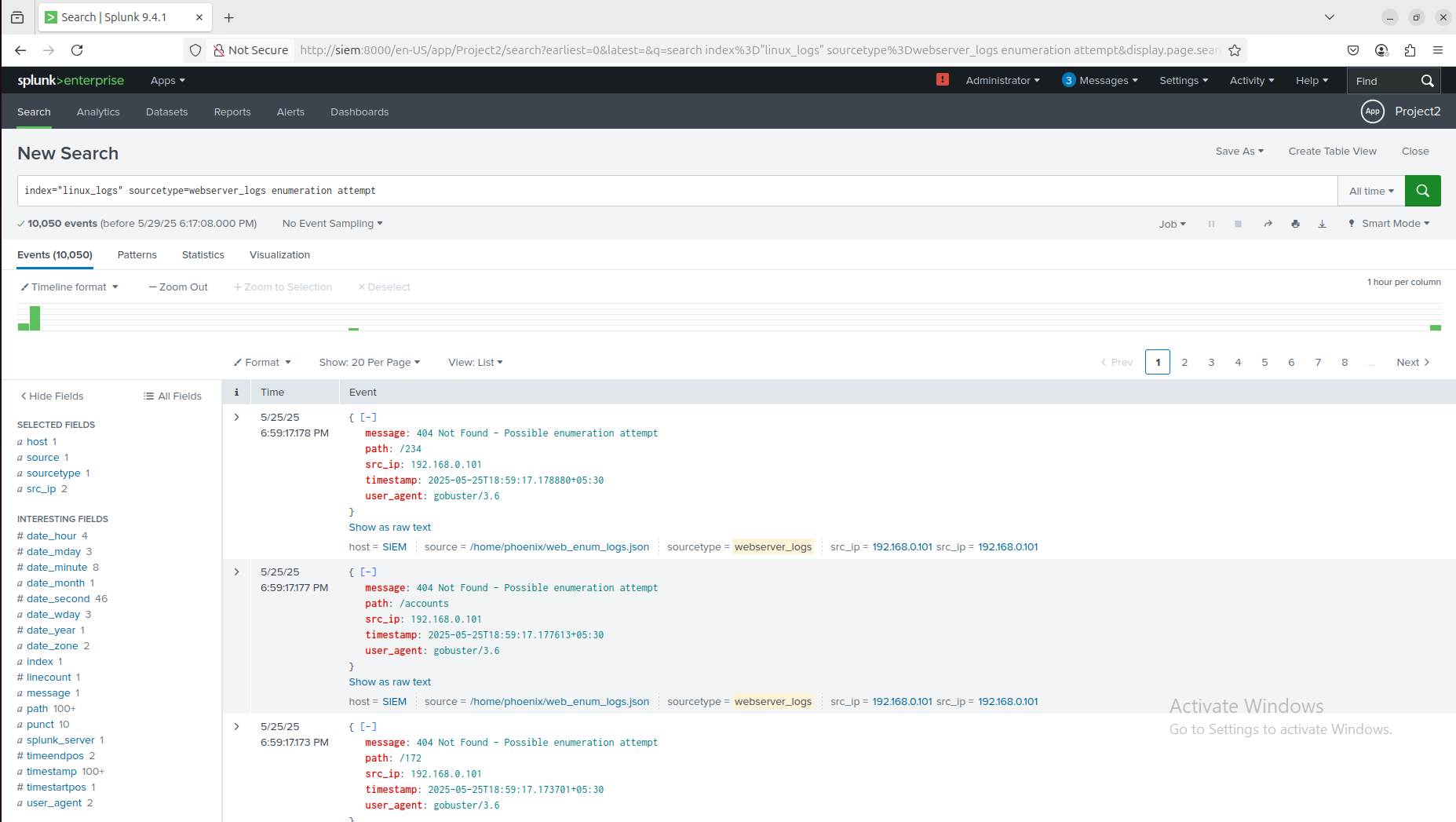

Image showing Web enumeration logs in Splunk

Image showing Web enumeration logs in Splunk

Alerts and Detection in Splunk

Created custom Splunk alerts to detect:

  • Multiple failed login attempts from the same IP (SSH, FTP, Web)

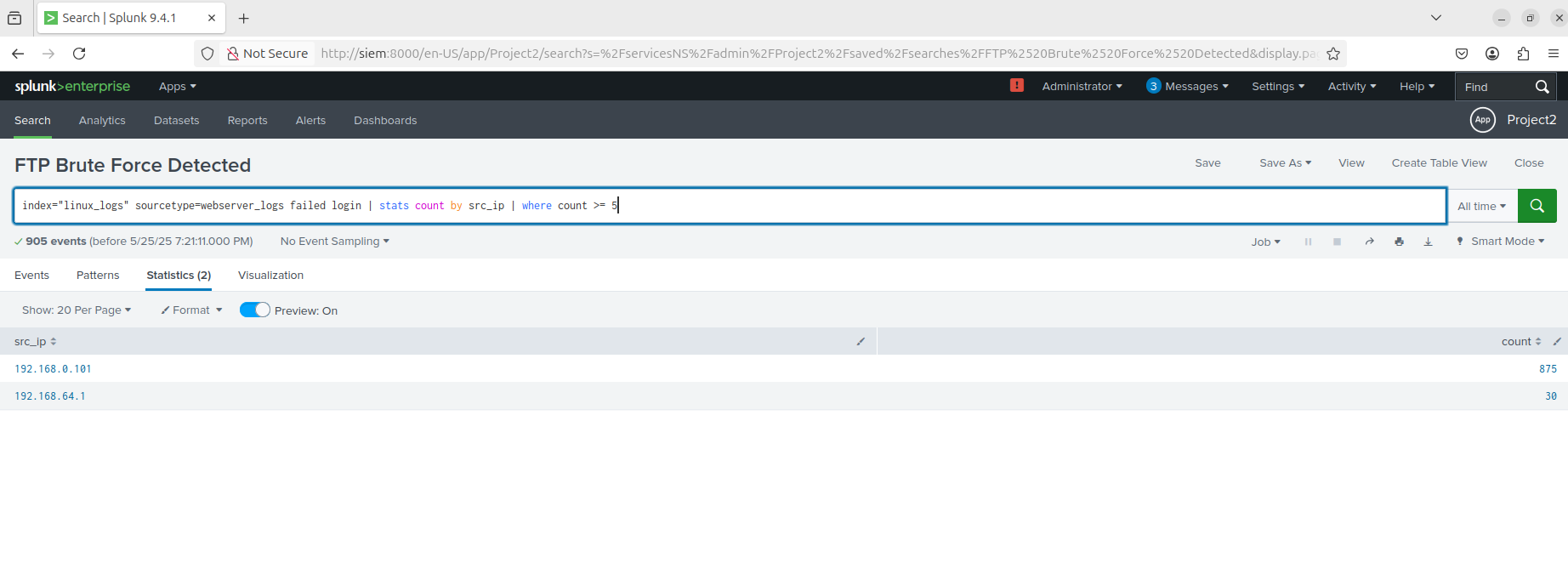

    Multiple failed FTP login attempts alert in Splunk

    Multiple failed FTP login attempts from same IP in Splunk

  • Configured SSH,FTP,Web server alerts to detect brute force attacks

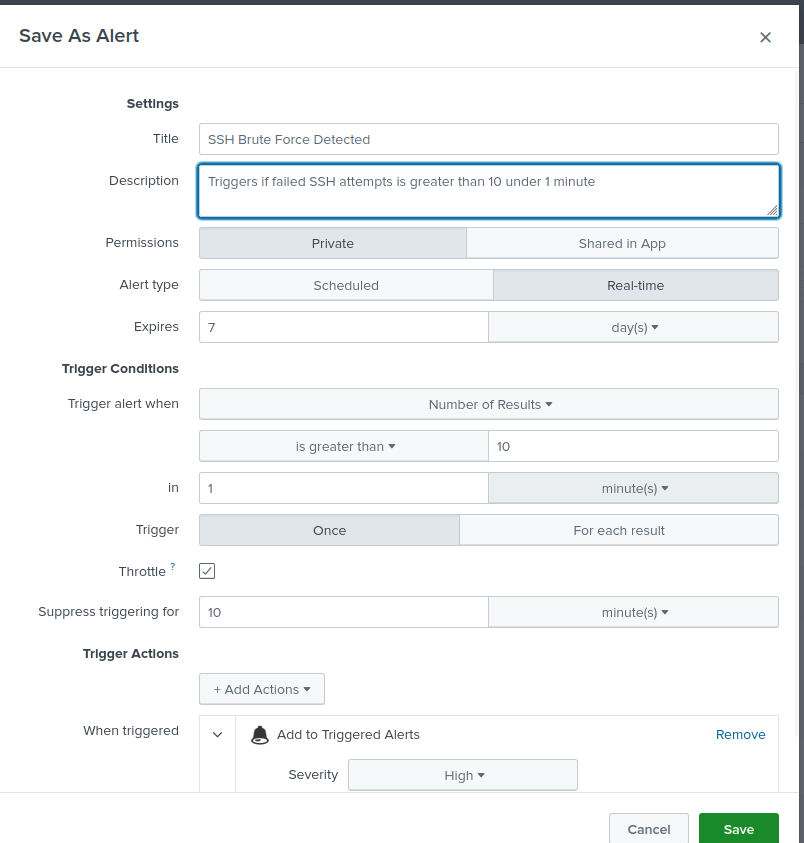

SSH brute-force alert in Splunk

SSH brute-force alert in Splunk

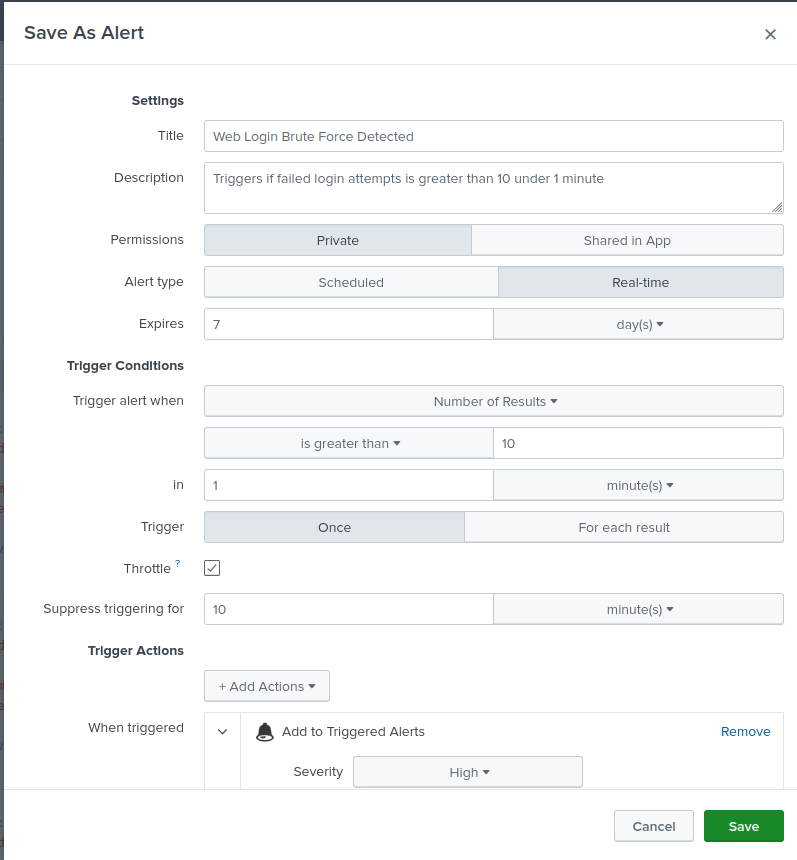

Web login brute-force alert in Splunk

Web login brute-force alert in Splunk

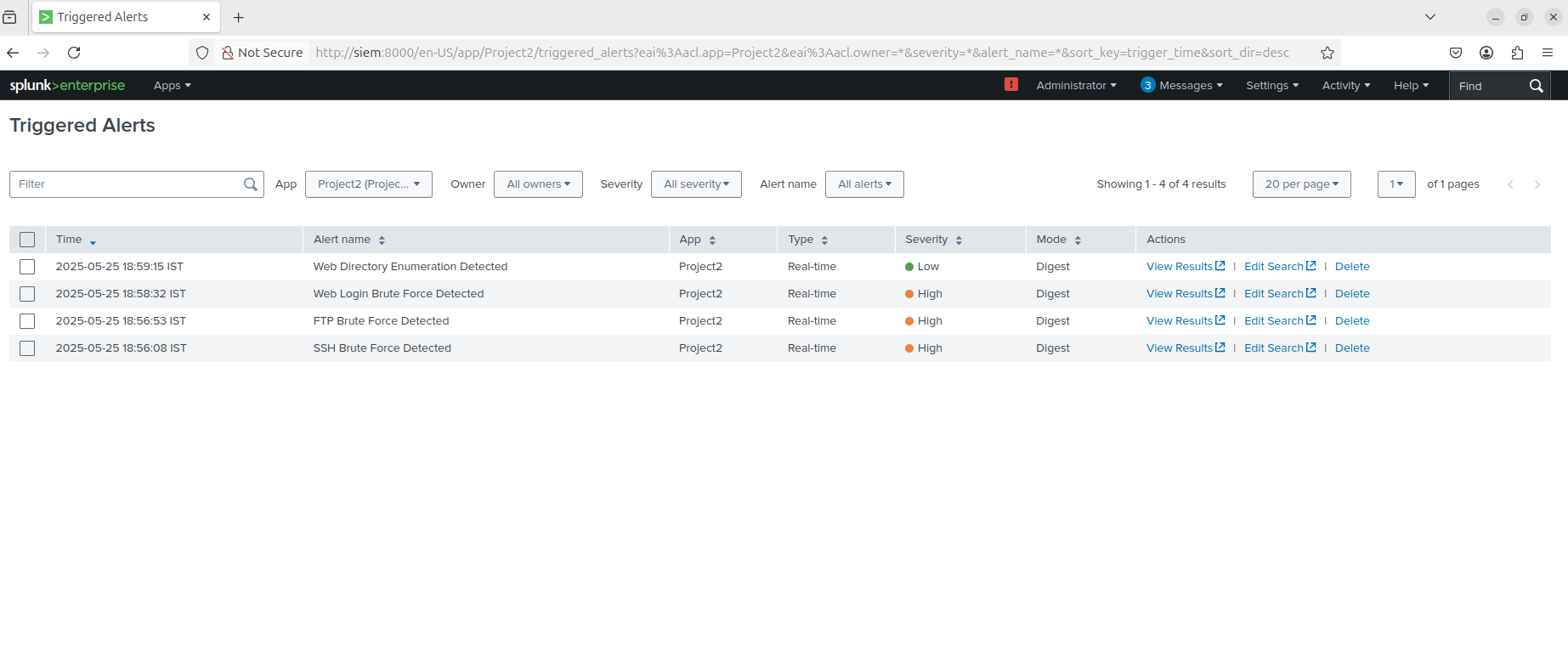

Triggered alerts

Triggered Splunk alerts dashboard

Splunk dashboard showing triggered alerts

Visualization and Dashboards

Dashboards in Splunk provided real-time insights into attacker behavior:

  • 🔍 Top attacking IP addresses
  • 👤 Most used Passwords

Dashboards were built using Splunk's search queries and visual panels like bar charts, pie charts.

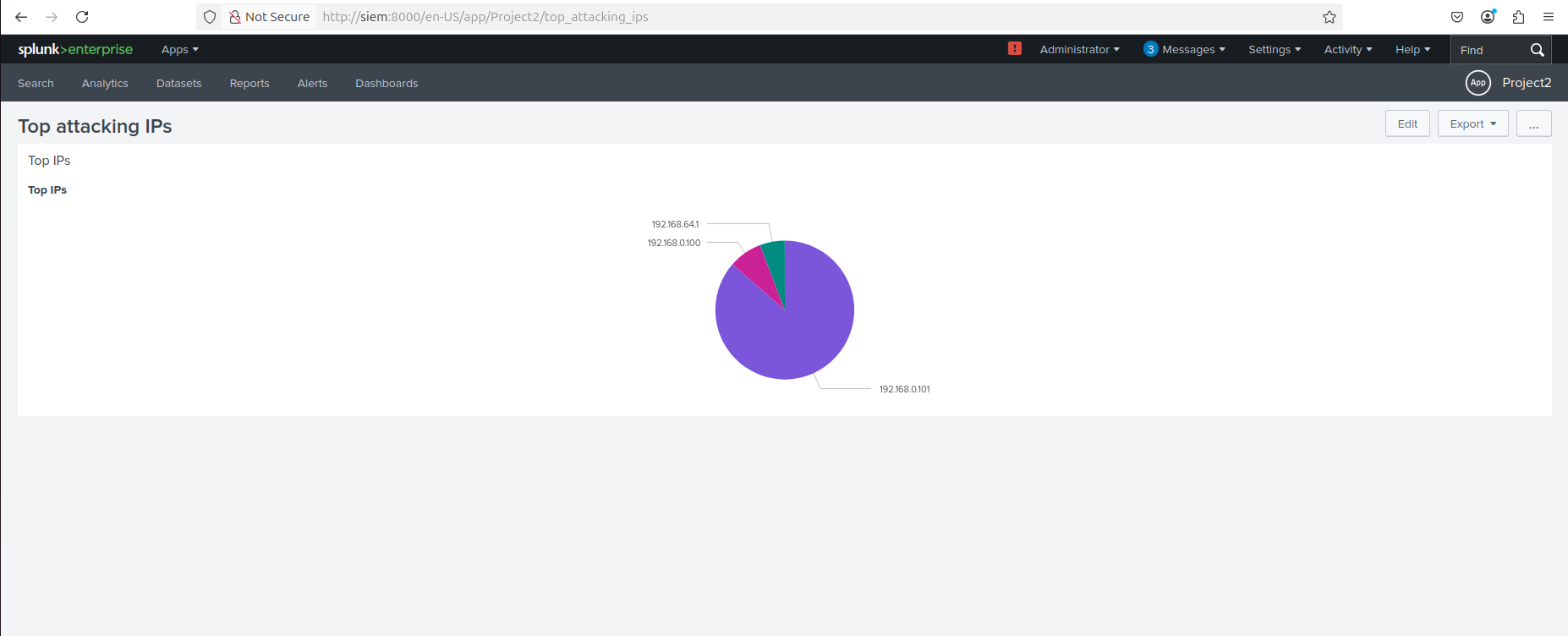

Top attacking IP addresses dashboard

Splunk dashboard showing top attacking IP addresses

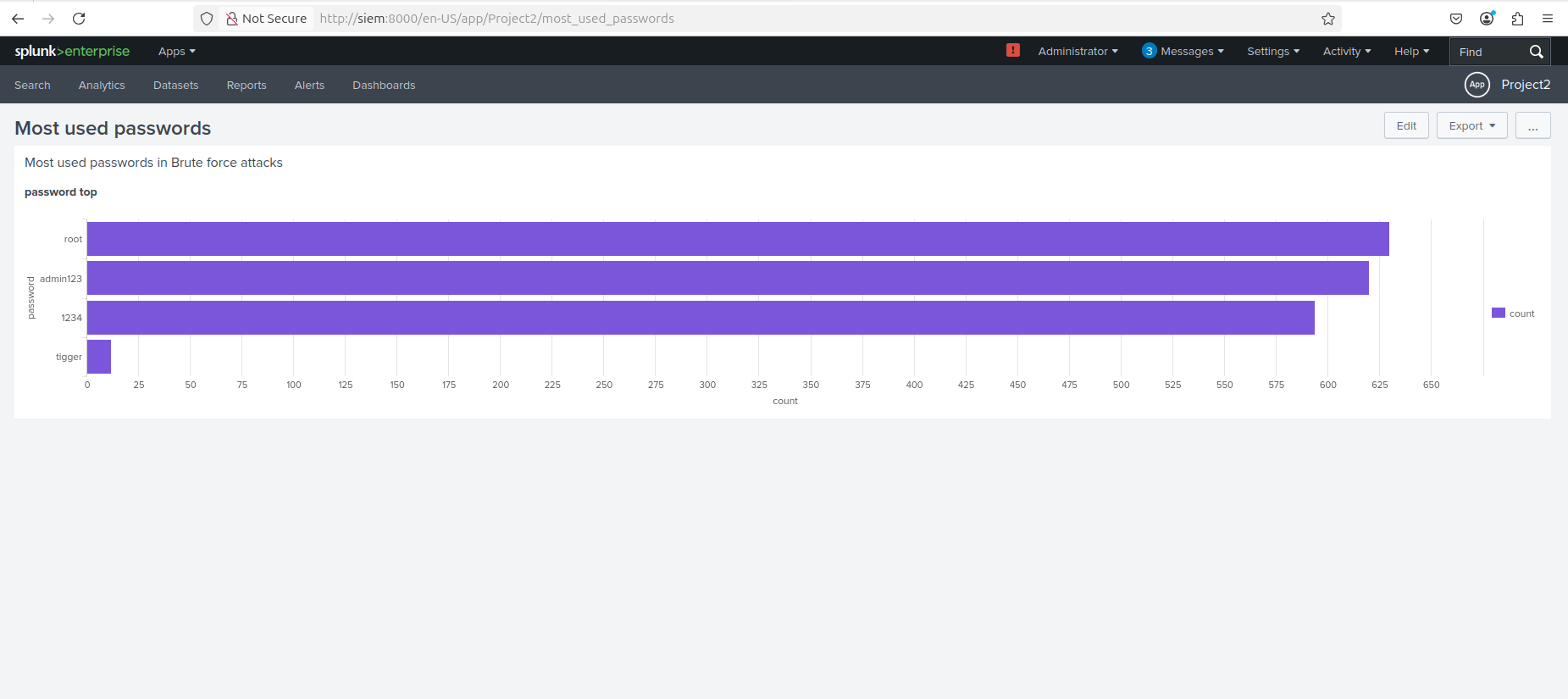

Most used passwords dashboard

Splunk dashboard showing most used passwords

Results

  • Detected brute-force and enumeration attacks in near real-time
  • All simulated attacks were logged with metadata: IP, action, user, timestamp
  • Alerts and dashboards gave clear visibility into attacker tactics

Conclusion

This project enhanced my skills in:

  • Deploying and configuring a SIEM (Splunk)
  • Simulating and analyzing attacker behavior
  • Writing regex for field extraction and configuring Splunk's ingestion pipeline
  • Creating visualizations and alerts for real-time detection

It showcases how Splunk can be used effectively for threat detection and log correlation in a realistic cyber defense setup.
